Product Details:
Payment & Shipping Terms:
|
| Model: | H720RT | Motor Performance (input Capacity): | 2800W |
|---|---|---|---|
| Dimension(HxWxD): | 1460X1550X1200mm | Table Depth: | 720mm |
| Narrow Cut: | 30mm | Weight: | 500.0kgs |
| High Light: | paper cutter machine,paper cutting equipment |
||

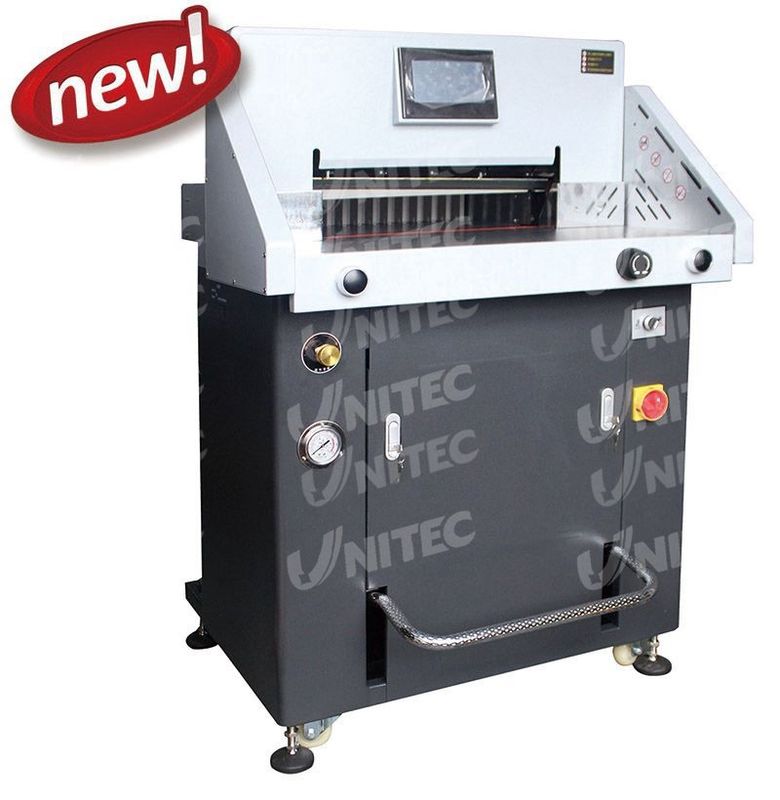

2800W Hydraulic Programmable Paper Cutter H720RT with CE Certificated
H720R is a hydraulic programmed guillotine that can set 100 programs, each program can set 21 cuts, it is for cutting paper sheets, books and photo albums.
Specifications:
|
Model |
H720RT |
|
Max. Cutting Height |
80mm |
|
Max. Cutting Length |
720mm |
|
Narrow Cut |
30mm |
|
Weight |
500.0kgs |
|
Table Depth |
720mm |
|
Dimension(HxWxD) |
1460X1550X1200mm |
|
Motor Performance (input capacity) |
2800W |
|
Power Supply |
AC110, 220V/60, 50Hz |
|
Paper Push System |
Program-control,sever motor |
|
Paper Press System |
Hydraulic |
Description:
1. Double Hydraulic with strong power system design: Taiwan motor with strong power, Taiwan hydraulic components for ensure quality.
2. Inclined blade cutting patented technology: Any paper can be cut easily with inclined blade design.
3. Patented technology of oscillating oil cylinder: Oil cylinder swing design makes balance cutting power.
4. Adjustable gap of blade carrier patented technology: ± 0.3mm cutting precision, long service time.
5. Pushing paper with double guide rod & double ball screw paper-push ensuring the precision of pushing.
6. Pushing paper platform without slot design: Improve the strength of the pushing paper platform, prevent debris into the transmission parts which can extend the service life of the machine.
7. Patent technology of program adjust for blade depth: the depth accurate can be adjusted in program within 0.5mm.
8. External change knife switch function: Makes blade replacement convenient and efficient.
9. Blade lock design for knife support:add the blade lock device to guard against the blade slip which is according to the safety standard.
10.Outer adjustment for pressing pressure: Easy operation, outer adjustment for pressing pressure.
11.Swing arm design for knife support.Solve the problem that the roller slot that is easy to wear and tear, increase the utility time.
12.Mechanical pedal for pressing paper: The device is easy and safety for alignning the paper which corresponds the CE standards.
13. The paper pusher platform can be folded. And side table cab be chose.
Competitive Advantage:
1. Double Hydraulic with strong power
2. Optical cutting line
3. Automatic blade return
